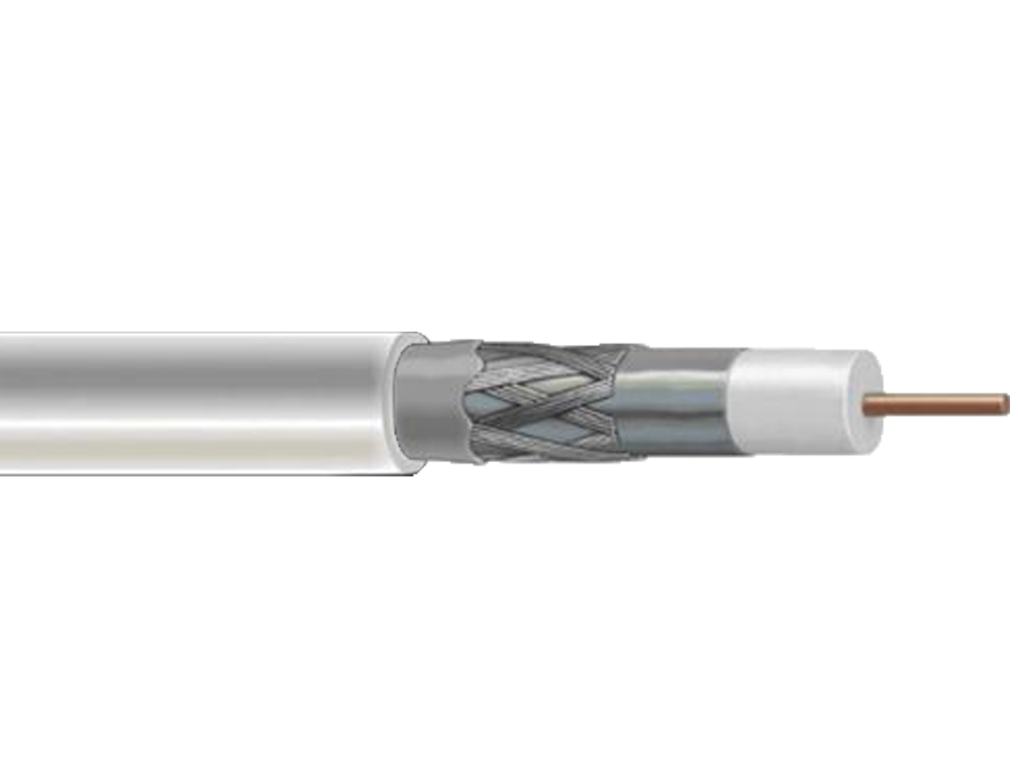

RG6 TRI-Shield CATV 75 Ohm Coaxial Cable
CABLE CONSTRUCATION
CENTER CONDUCTOR 1.02mm 25% Copper Covered Steel
DIELECTRIC 4.80±0.10mm Foamed PE
INNER SHIELD
Foil: 17mm Bonded Foil
OUTER SHIELD Foil: 19mm Al/PT Foil
Braid: 16x5x0.12mm Aluminum
JACKET 6.80±0.10mm 65° White PVC
ELECTRICAL PROPERTIES
SPAKER TEST 250V
DIELECTRIC STRENGTH Conductor to Shield: 2500VDC
CAPACITANCE
15.5pF/FT.Nom
50.9pF/m.Nom
IMPEDANCE 75.0 ±3.0 Ohm
VELOCITY OF PROPAGATION 84.0% Nom
DCE: Conductor: 32Ohms/1000FT. 105Ohm/Km
Shield: 5.3Ohms/1000FT. 17.4Ohm/Km
SRL
20dB(5 thru 1000MHz)100% Swept Tested
15dB(1000thru 3000MHz)100% Swept Tested
