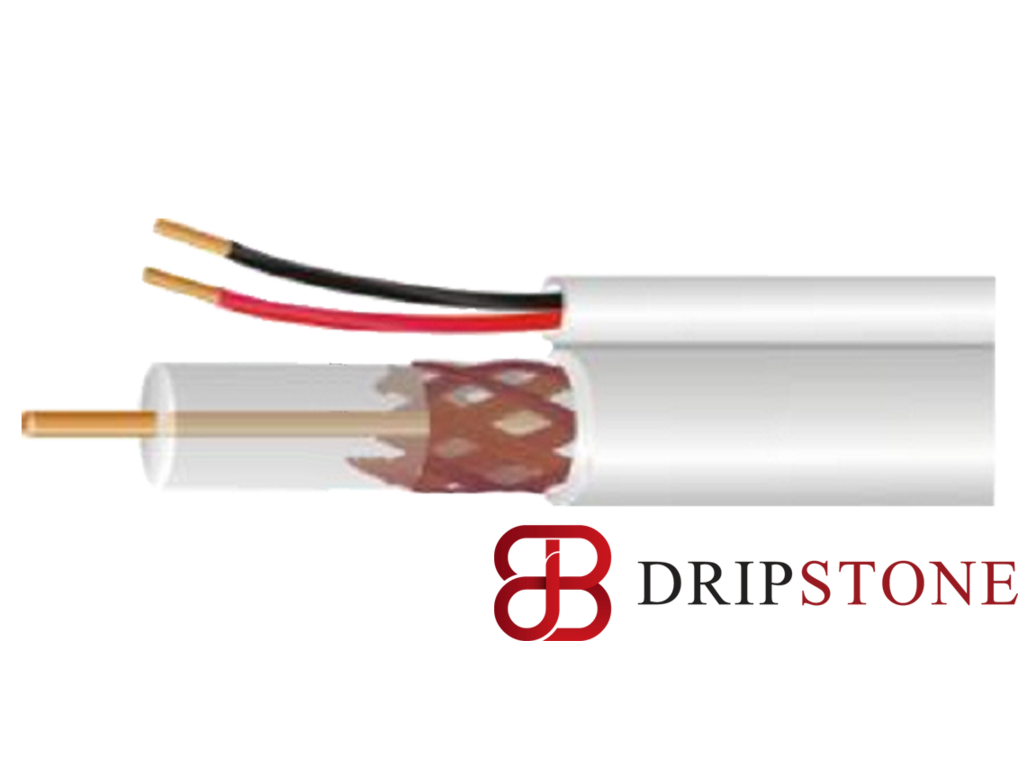

Construction
Center Conductor: 0.58mm 100% Copper
Dielectric: 3.75 ± 0.10mm Solid PE
Shield: Braid 16x7x0.12mm CCA
DC Power wire: 2DC x 0.81mm CCA + 1.43HDPE
Jacket: 6.00 ± 0.10mm 70? White PVC
Electrical Properties
Spaker test
Dielectric strength: 2500V
Capacitance: Conductor to shield 2000VDC
Impedance: 15.5F/FT.Nom. 50.9pF/m.Nom
Velocity of propagation: 75.0 ± 3.0 Ohms
DCE: Conductor: 84.0% Nom
Shield: 32 Ohms/1000FT. 105 Ohms/Km
5.3Ohms/1000FT. 17.4 Ohms/Km
SRL: 20dB(5 thru 1000MHz) 100% Swept Tested
15dB(5 thru 1000MHz) 100% Swept Tested
