Fire Resistant Fire Alarm Cable
Rated Voltage: 300/500V 0.6/1KV
Model: FR Fire Alarm
Range of Nominal cross section: 1 core: 1.5 mm² ~ 300 mm² Multi core: 0.75 mm² ~ 35 mm²
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

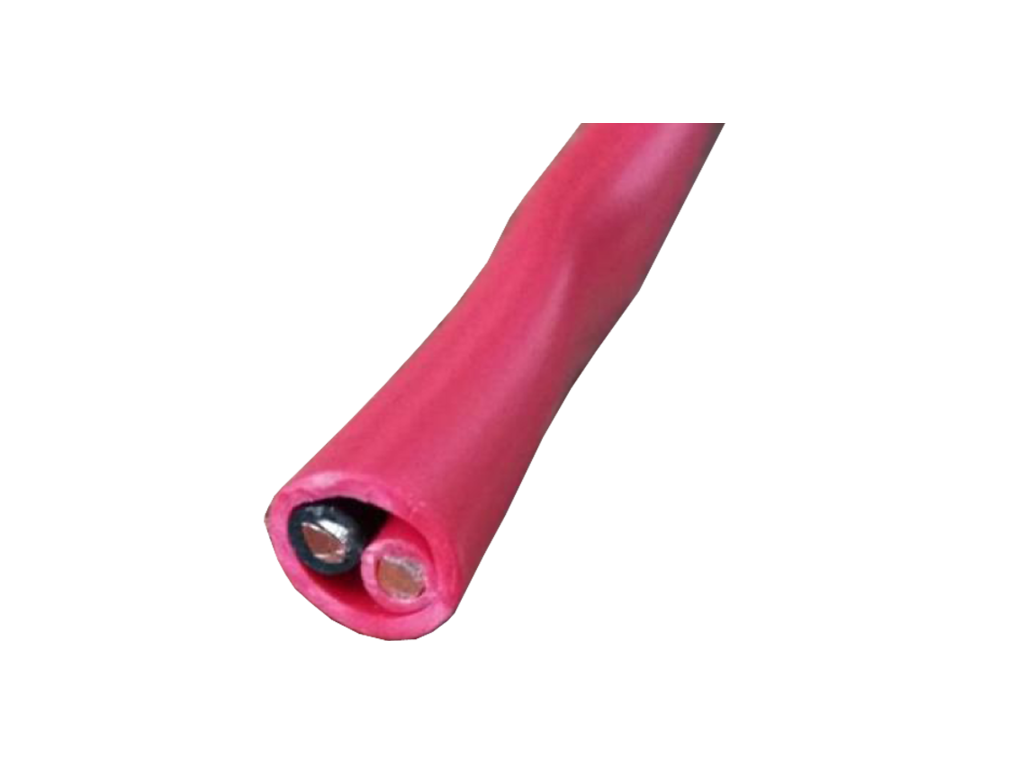

Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: PVC flame retardant
Outer Jacket: PVC flame retardant
Core color: red, black, red or black for sheath
Max. Operating Temperature : -20 to +70
Packing:200m Pull box
