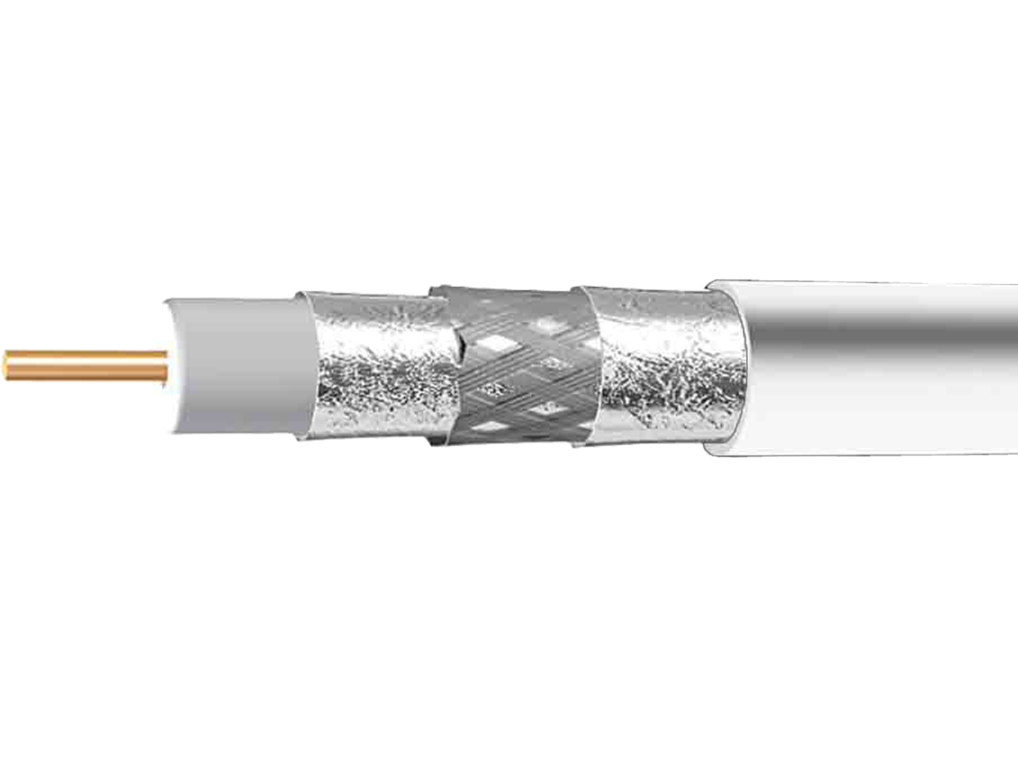

Center Conductor: 1.02mm 21% Copper Covered Steel
Dielectric: 4.80±0.10mm Foamed PE
Inner Shield: 17mm Bonded Foil, Braid: 16x7x0.16mm Aluminum
Outer Shield: 20mm Al/PT Foil
Jacket: 7.2±0.10mm 65° White PVC
Electrical Properties
Spaker Test: 2500V
Dielectric Strength: 2000VDC Conductor to Shield
Capacitance: 15.5pF/FT.Nom. 50.9pF/m.Nom.
Impedance: 75.0±3.0 Ohms
Velocity of propagation: 84.0% Nom.
DCE:
Conductor: 32 Ohms/1000FT. 105 Ohms/Km
Shield: 5.3 Ohms/1000FT. 17.4 Ohms/Km
SRL:
20dB(5 thru 1000MHz)100% Swept Tested
15dB(5 thru 1000MHz)100% Swept Tested
