Electrical
Voltage rating: 125V AC rms
Current rating: 1.5Amp
Contact resistance: 100m Ohms (maximum)
Insulation resistance: 1,000M Ohms (minimum) at 500V DC
Dielectric strength: 750V AC rms, 60Hz and one minute
Environment

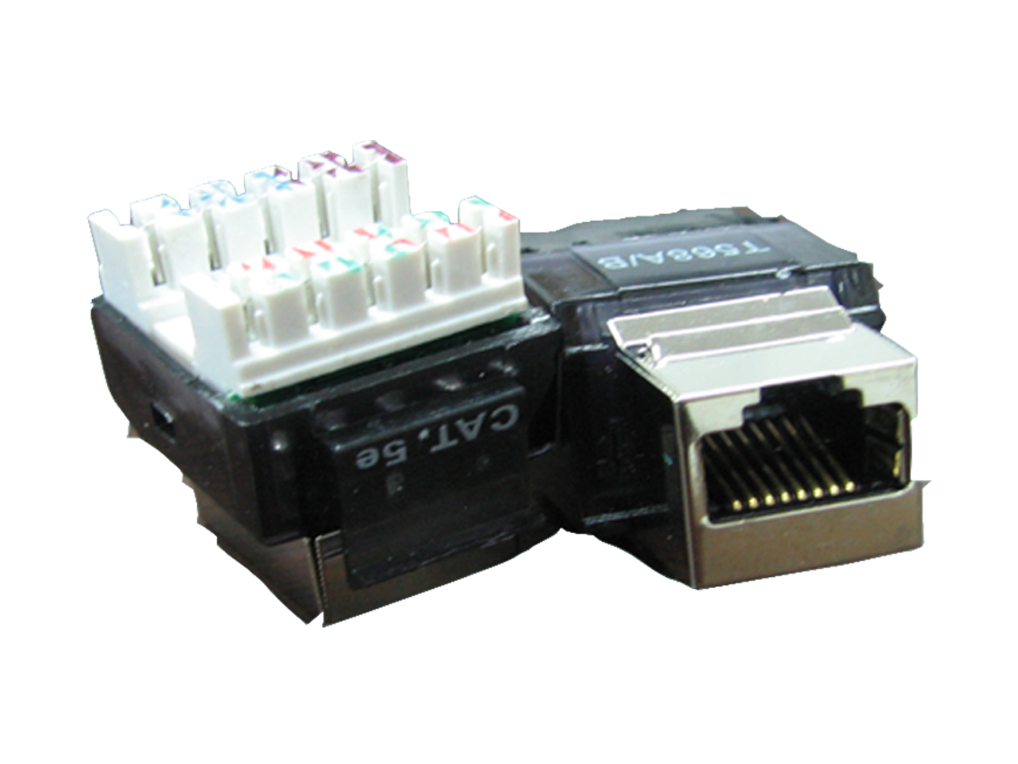

Cat5e keystone jack white
Storage temperature: -40 to +85°C
Operating temperature: 0 to 70°C
Conform to TIA/EIA 568B category 5e
Mates with modular plug conforming to FCC part 68 and subpart F
Mechanical
Housing material: PC UL94V-0
Inner material: flame-retardant ABS UL94V-0
PCB material: FR-4
Thickness: 1.6mm
Contact material: phosphor bronze stamp and PIN T=0.35mm
IDC contact material: phosphor bronze, T=0.50mm with nickel plating
Wire: 24 to 26AWG
